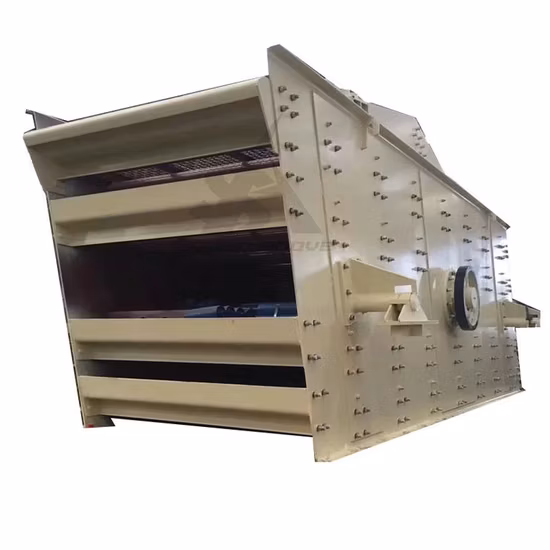

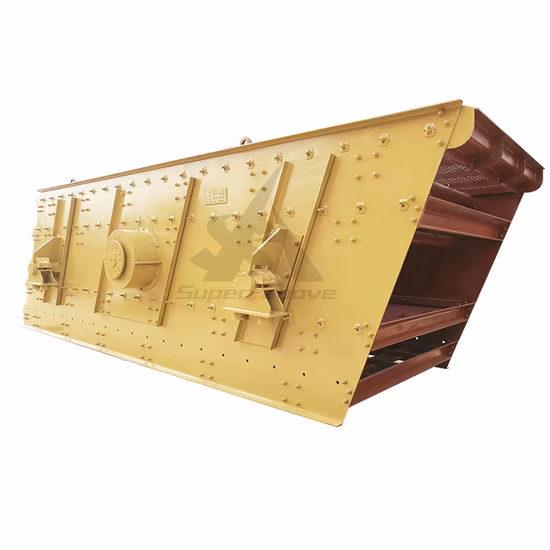

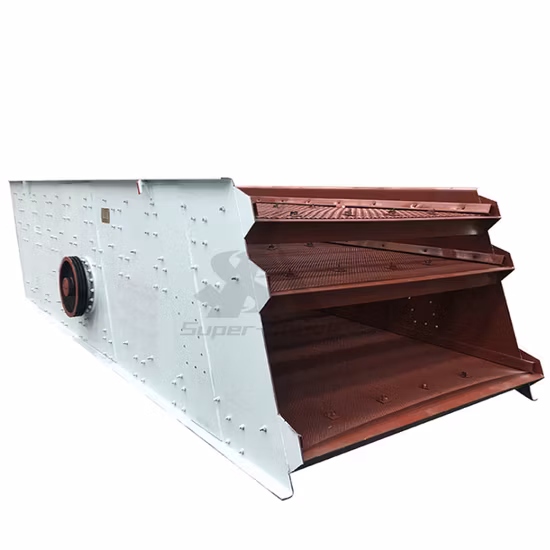

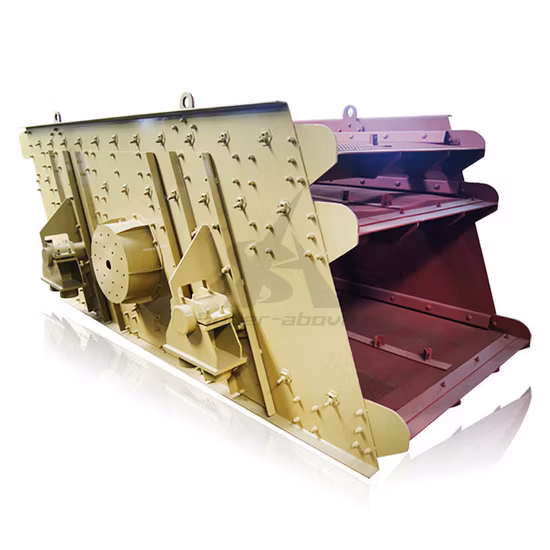

Mining Banana Type Vibrating Screen for Coal Washing Plant

Basic Info.

Model NO.	YK&S5X vibrating screen
Energy Saving	Energy Saving
Warranty	1 Year
Color	Multi Color
Customized	Customized
Condition	New
Mesh Size	2-70mm
Power	11-37kw
Feeding Size	500mm
Vibration Frequency	800-900rpm
Inclination	18degree
Double Amplitude	7-12mm
Screen Layers	2-5layers
Transport Package	Standard Container
Specification	vibrating screen
Trademark	Super-above
Origin	Shanghai, China
HS Code	8474100000
Production Capacity	800sets Per Month

Product Description

Brief Introductions of vibrating screen
The circular vibrator is driven by an inertial vibrator with an eccentric block fixed in it, which makes the sieve box vibrate. Because of the position deviation of the vibrator installation, the actual motion track of the sieve box is usually ellipse. The machine mainly comprises a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, a chassis, a suspension(or support)device,and an electric motor. In addition, the vibrator adopts the eccentric structure, the feeding box can be selected, the application of the feeding box increases the effective screening area of the vibrating screen, and the service life of the feeding end screen is prolonged.

Main features of vibrating screen
1. Reliable structure and strong vibration force, high screening capacity.
2. Widely used in mining, building materials, metallurgy, energy and chemical industries.
3. Vibrating screen can be adjusted of the screen inclination to achieve the best screening effect.
4. Low noise and smooth structure small impact on the motor.
5. Wide application and high screening efficiency.
6. Low noise and no dust that create a good working environment.
7. Replace the different mesh sizes to meet customers' requirements.
8. Screen replaceable for different mesh sizes, multilayer screens.
Working principle of vibrating screen
Vibrating screens is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more. Vibrating Screen moves round. It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line. We have always kept in our minds the choices, preferences and the tastes of our all clients. We will offer you suitable type according to your requirements.
Specifications of vibrating screen

1>. S5X series vibrating screen

Model	Screen Size W×L(mm)	Screen Layers	inclination (°)	Vibration frequency (RPM)	Double amplitude (mm)	Power (kW)	Capacity(t/h)	Mesh Size(mm)
S5X1230-2	1200×3000	2	18(18-25)	800-900	7-12	11	25-200	2-70
S5X1545-2	1500×4500	2	18(18-25)	800-900	7-12	11	45-380	2-70
S5X1545-3	1500×4500	3	18(18-25)	800-900	7-12	15	45-380	2-70
S5X1845-2	1800×4500	2	18(18-25)	800-900	7-12	15	60-450	2-70
S5X1845-3	1800×4500	3	18(18-25)	800-900	7-12	22	60-450	2-70
S5X1860-2	1800×6000	2	18(18-25)	800-900	7-10	15	75-600	2-70
S5X1860-3	1800×6000	3	18(18-25)	800-900	7-12	30	75-600	2-70
S5X1860-4	1800×6000	4	18(18-25)	800-900	7-12	37	75-600	2-70
S5X2160-2	2100×6000	2	18(18-25)	800-900	7-12	22	85-700	2-70
S5X2160-3	2100×6000	3	18(18-25)	800-900	7-12	30	85-700	2-70
S5X2160-4	2100×6000	4	18(18-25)	800-900	7-11	37	85-700	2-70
S5X2460-2	2400×6000	2	18(18-25)	800-900	7-12	22	100-800	2-70
S5X2460-3	2400×6000	3	18(18-25)	800-900	7-11	30	100-800	2-70
S5X2460-4	2400×6000	4	18(18-25)	800-900	7-10	37	100-800	2-70
S5X2760-2	2700×6000	2	18(18-25)	800-900	7-12	30	120-900	2-70
S5X2760-3	2700×6000	3	18(18-25)	800-900	7-11	37	120-900	2-70

2>. YK series vibrating screen

Model	Screen Size (mm)	Layers	Mesh Size (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kw)	Motor Model	REV (r/min)	Amplitude (mm)	Angle (°C)	Machine Size (mm)
2YK1237	1200×3700	2	3-50	≤200	7.5-80	4-15	Y160L-4/15	970	8	20	4010×2250×2660
3YK1237	1200×3700	3	3-50	≤200	7.5-80	4-15	Y160L-4/15	970	8	20	4010×2250×3140
2YK1548	1500×4800	2	5-50	≤400	50-208	4-15	Y160L-4/15	970	8	20	5120×2590×3060
3YK1548	1500×4800	3	5-50	≤400	50-250	4-15	Y160L-4/15	970	8	20	5120×2590×3540
2YK1848	1800×4800	2	5-80	≤400	50-260	4-18.5	Y180M-4/18.5	970	8	20	5120×2950×3060
3YK1848	1800×4800	3	5-80	≤400	50-300	4-18.5	Y180M-4/18.5	970	8	20	5120×2950×3540
2YK1860	1800×6000	2	5-80	≤400	50-300	4-18.5	Y180M-4/18.5	970	8	20	6260×2950×3480
3YK1860	1800×6000	3	5-80	≤400	50-350	4-22	Y180L-4/22	970	8	20	6260×2990×3960
2YK2160	2100×6000	2	5-150	≤400	100-500	4-22	Y180L-4/22	730	6-8	20	6270×3410×3670
3YK2160	2100×6000	3	5-100	≤400	100-500	4-30	Y200L-4/30	730	6-8	20	6270×3470×4100
2YK2460	2400×6000	2	5-150	≤400	150-700	4-37	Y225S-4/37	730	6-8	20	6270×3770×3610
3YK2460	2400×6000	3	5-150	≤400	150-700	4-37	Y225S-4/37	730	6-8	20	6270×3790×4100
