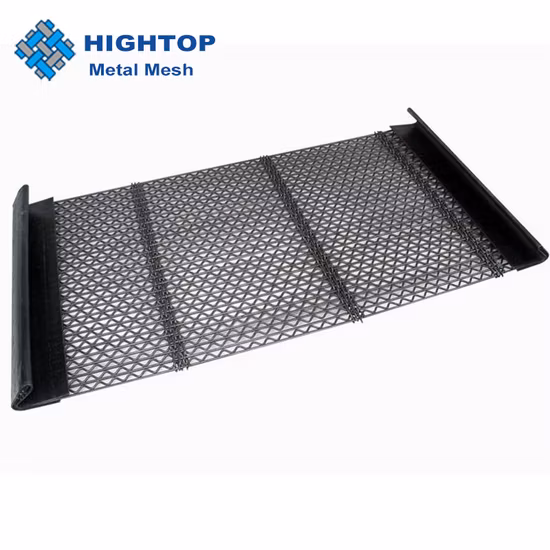

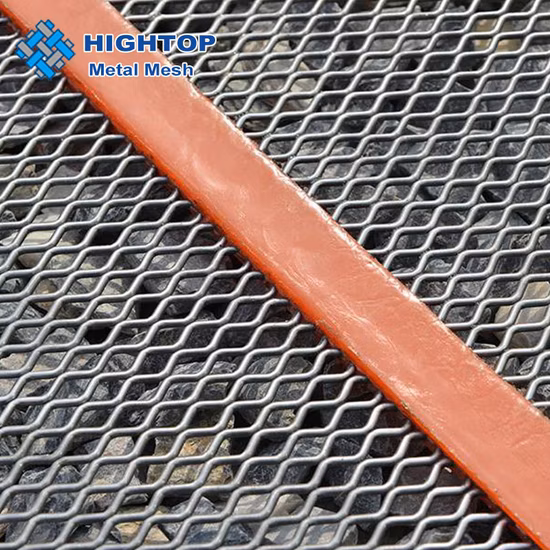

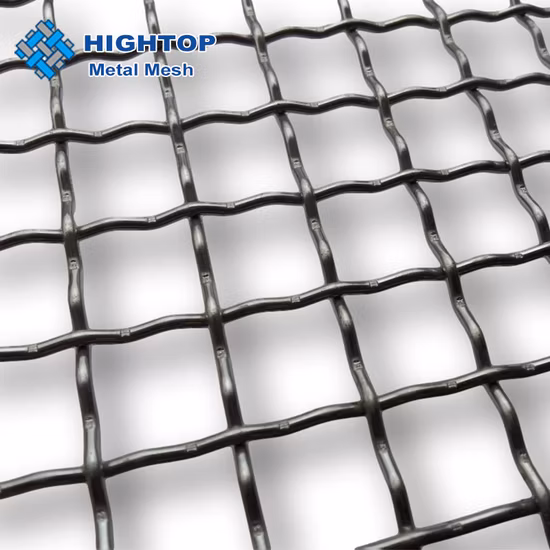

Quarry Sand Production Line Crushing and Screening Device Vibrating Screen Multi Layer Screen Mining Wire Mesh Vibrating Screen

Overview

Basic Info.

Model NO.	SZZ Series
Usage	Mine Shaker
Works	Spiral Flash Shaker
Shaft Number	Single
Running Track	Linear Vibrating Screen
Supporting Device	Coil Spring
Warranty	1 Year
Customized	Customized
Condition	New
After-sales Service	1 Year
Transport Package	Container
Specification	800*1600
Trademark	XKJ Group
Origin	He Nan
HS Code	8474209000

Product Description

Product Description

1.Application Fields of Vibrating Screen:Vibrating screen products are mainly used in coal, metallurgy, building materials, chemical industry and other industrial department of medium and small size materials. Since the fixed center shaker is circular trajectory, simple structure, strong and durable, reliable performance, easy maintenance, high production efficiency, thus is widely used.2.Vibrating Screen,Sand separation Equipment Introduction:Vibrating screen is a kind of multi-layers and new style vibrating screen. It adopt cylindrical eccentric shaft vibrator and electric block used to adjust the vibrating amplitude. It features long screening body,multi-sizes separated, reliable structure,strong vibrating, high screening efficiency, low noise, easy for maintenance, safty ,adjustable for the vibrating strength.It is widely used mining, building materials , energy and chemical industries.

Product Parameters

Model	Screen Layer	Max. Feeding Size (mm)	Capacity (t/h)	Mesh Size (mm)	Angle (° )	Motor Power (kw)	Weight (kg)
SZZ900×1800	1	40	20-25	1-25	15-25	2.2	420
2SZZ900×1800	2	40	40-50	1-25	15-25	2.2	570
SZZ1250×2500	1	200	70-100	1-40	15-25	5.5	1020
2SZZ1250×2500	2	200	70-100	1-40	15-25	5.5	1320
SZZ1500×3000	1	200	90-200	1-50	15-25	7.5	1650
2SZZ1500×3000	2	200	90-200	1-50	15-25	7.5	2870
2SZZ1500×4000	2	200	90-200	1-50	15-25	15	4240
SZZ1500×4800	1	200	100-230	1-50	15-25	15	3750
2SZZ1500×4800	2	200	100-230	1-50	15-25	15	5515
SZZ1800×3600	1	200	100-280	1-150	15-25	18.5	4500
2SZZ1800×3600	2	200	100-280	1-150	15-25	18.5	5616
SZZ1800×5400	1	200	120-320	1-150	15-25	18.5	4980
2SZZ1800×5400	2	200	120-320	1-150	15-25	18.5	6769
SZZ2100×6000	1	400	150-400	1-200	15-25	22	5423
2SZZ2100×6000	2	400	150-400	1-200	15-25	30	8980
SZZ2400×6000	1	400	180-500	1-200	15-25	30	8500
2SZZ2400×6000	2	400	180-500	1-200	15-25	30	10200

working principle

Vibrating screen is mainly consists of screen box, vibration exciter, hanging (or supporting) unit, and motor. When the vibrating screen is working, under the effect of vibrator, the screen box and screen cloth will move on a circular, oval, or linear motion, which will make the materials on the surface of screen disperse and move up and down. Thus, the fine particles can fall through the material layer and then are expelled from the sieve hole. And the bigger particles will continue to move forward under the effect of vibration.

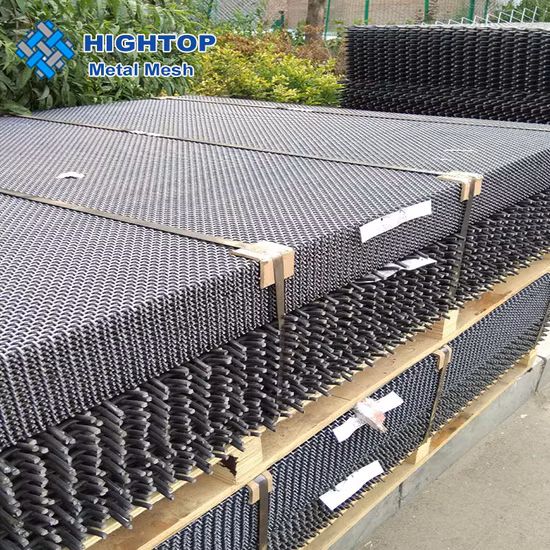

Packaging & Shipping

Company Profile

Henan Xingyang Mining Machinery Manufactory is a large sized joint-stock enterprise integrated with the scientific research,production and sales of heavy mining machinery. The company have five standard heavy industrial workshops covering 80,000 square meters,more than 160 machines used for gold processing,plug welding and assembling with large and medium sizes, and more than 500 works including over 50 administrators with intermediate and senior title and engineering technicians.

After Sales Service

-Pre-sale servicesBased on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers. -Sale servicesOur experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients' request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.-After-sale service.Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
